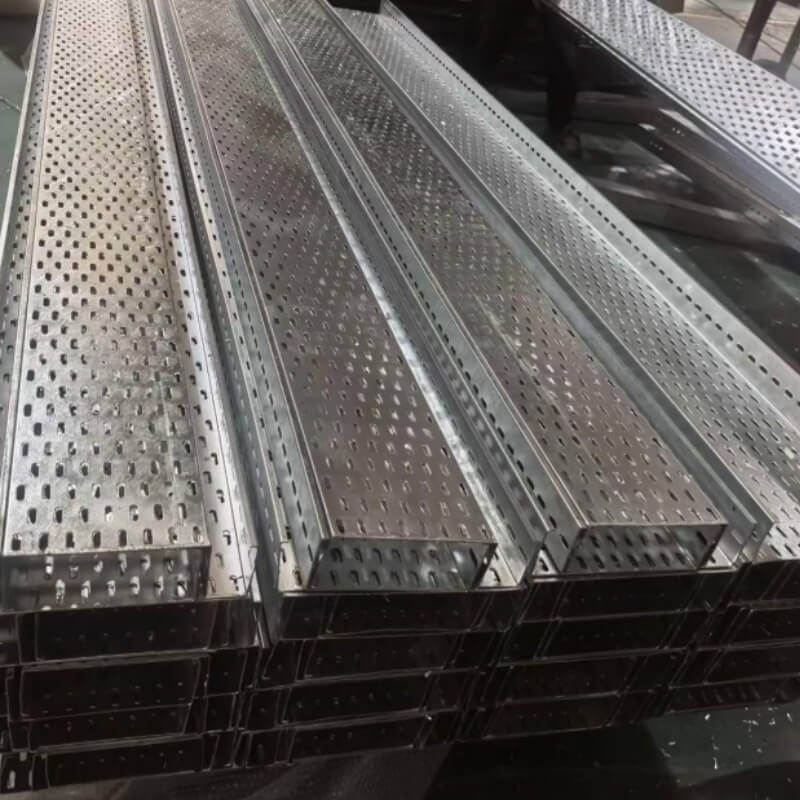

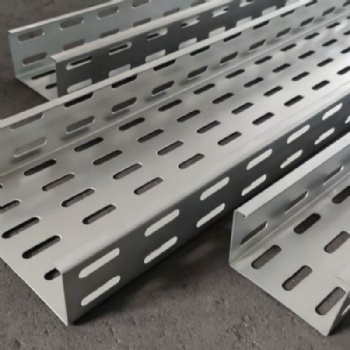

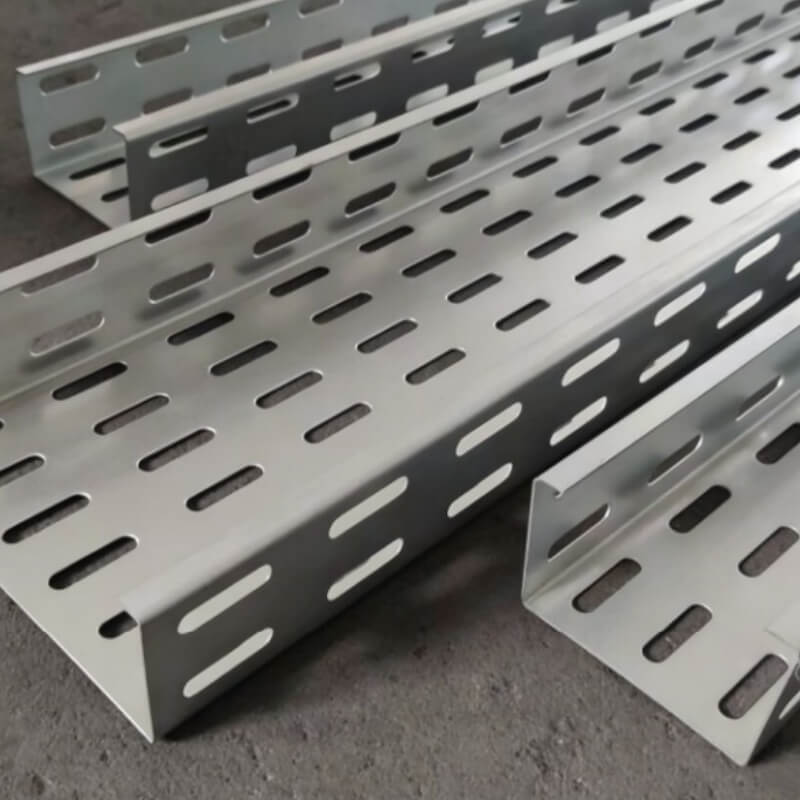

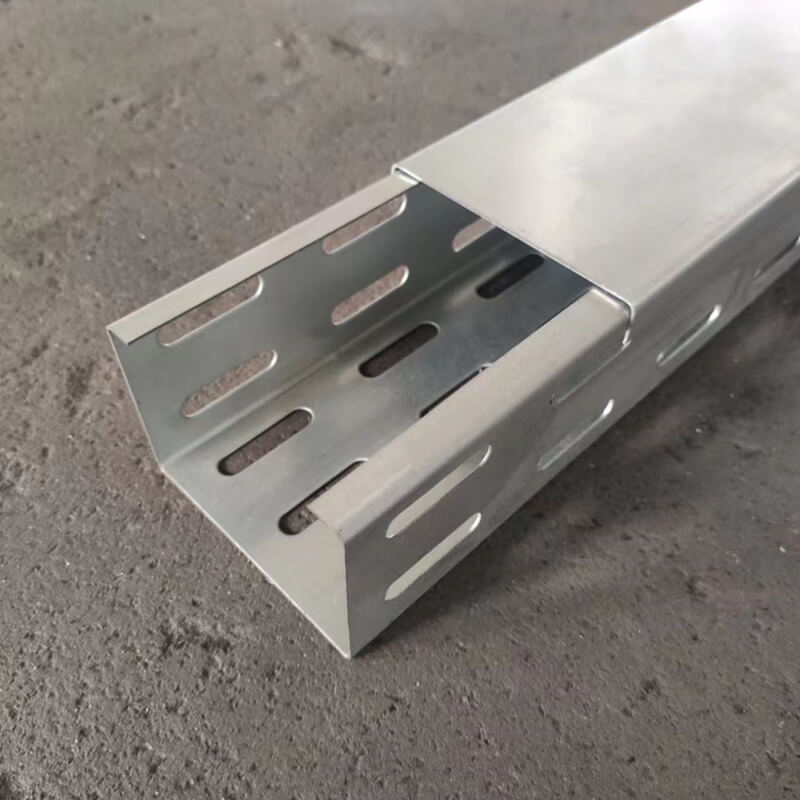

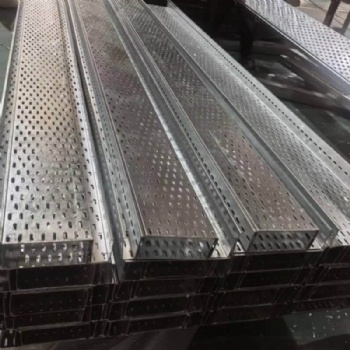

Hot Dip Galvanized Perforated Cable Tray | HDG Corrosion Resistant Cable Tray

Winwin Hot Dip Galvanized Perforated Cable Tray integrates heavy load capacity and premium ventilation, efficiently dissipating heat to avoid cable overheating and maintain safe, stable wiring layout. The open perforated structure streamlines cable laying, routine inspection and later circuit modification, perfectly matching outdoor plants, substations and coastal industrial sites.

Sturdy, well-aerated and long-lasting against harsh weather, our HDG ventilated cable tray provides dependable support for dense cable layouts. It is extensively applied in outdoor power distribution stations, factory yards, municipal infrastructure and open-air commercial facilities, featuring quick assembly and extended service lifespan under rain and salt mist.

Constructed with enhanced structural rigidity and maximum air circulation performance, this hot dip galvanized perforated tray is the top pick for outdoor industrial wiring, outdoor telecom infrastructure and exposed engineering projects with moderate to high corrosion risks.

Material & Finish available

Different material and surface finish for cable trays:

(1)Pre-Galvanized / PG / GI – for indoor use to AS1397

(2)Hot Dip Galvanized / HDG – for outdoor use to BS EN ISO 1461

(3)Stainless Steel SS304 / SS316 /SS316L

(4)ZAM-275g/m2

(5)Powder Coated – for indoor use to JG/T3045

(6)Fire Rated to AS3013:2005

(7)Electrolytic Polishing – for Stainless Steel use

(8)Mill / Mild /Plain Steel to ISO 4995

(9)Aluminum to AS/NZS1866

(a)   Aluminum plate;

(b)   Aluminum profile;

(10)Fiberglass Reinforced Plastics / FRP /GRP or composite

 (a)   Fiberglass Reinforced Plastics without steel lining;

 (b)   Fiberglass Reinforced Plastics with steel lining;

(11)Polymer

Drawing for HDG Perforated Cable Tray

WINWIN screw-on perforated cable tray systems are a proven wiring solution widely adopted by electrical engineers and planners worldwide for decades.

Engineered for outstanding structural stability and heavy load requirements, they combine reliable mechanical performance with a clean, streamlined design.

The system enables safe, efficient handling of all wiring construction tasks at any project site.

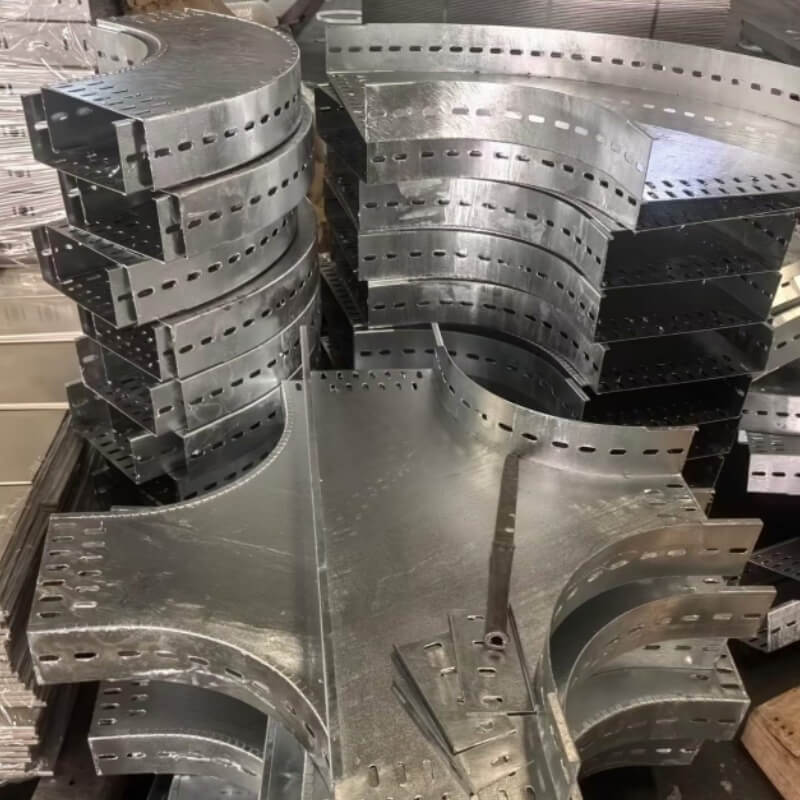

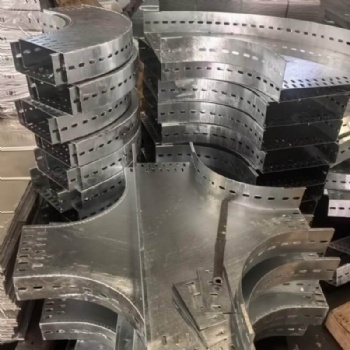

Bending Fittings And Brackets for Perforated Cable Tray

Schematic Diagram Of Perforated Cable Tray Space Layout

Production Process

Annual Production Capacity: 5000 Tons

With a large-scale production base, we are fully capable of supporting large orders, mass production, and ensuring stable and on-time delivery for global customers.

Strict Quality Control System

We implement a complete 5-step inspection process from raw material procurement to finished product delivery, strictly controlling every detail to ensure products meet international standards. All our cable trays and strut channels are certified by UL, CE, NEMA, SGS, and ISO9001.

Customization Service

We provide professional OEM & ODM services, supporting customization in size, surface treatment, load capacity, hole patterns, and other specifications to meet different project requirements.

Professional After-Sales & Technical Support

Our experienced after-sales team offers reliable technical support, on-site guidance, and customized solution design for your industrial and construction projects.

Packing And Delivery For Cable Tray

1.In bundle

2.Wrapping Film,plastic tape, Plywood pallet.

3.Plywood Pallets is optional for electric cable trunking

4.Carton for accessories

5.As per requirements

Installation Case On Site For Winwin Cable Tray System

Main Application

Certificate

Founded in 2006, Winwin Group has obtained certifications including UL, cUL,CE, SGS, ISO9001, ISO14001, ISO45001,IEC 61537-2006 and NEMA VE 1-2009.

Winwin is a professional manufacturer and supplier of a full range of cable management solutions, specializing in the design, production, and export of high-quality products. Our main products include pre-galvanized steel cable trays, hot-dip galvanized cable trays, powder coated cable trays, fire-resistant steel cable trays, stainless steel cable trays, basket cable trays, wire mesh cable trays, perforated cable trays, cable trunking, cable ladders, hinging cable trays, ZAM cable trays, large-span cable tray, aluminum cable trays, FRP cable trays, strut channels, and complete cable tray accessories.

Our premium cable trays and strut channels are widely used in commercial buildings, power plants, industrial workshops, hospitals, subways, data centers and other construction & electrical projects. They serve cable management, hoisting systems, industrial power distribution and building electromechanical engineering.We deliver stable quality, reliable performance and competitive pricing, offering cost-effective solutions for industrial and commercial projects across the globe.

Boasting 20 years of manufacturing and exporting experience, we have built an extensive global sales network and serve more than 70 countries and regions around the world, including the United States, Spain, Germany, Australia, New Zealand, and many others. We are committed to offering stable quality, on-time delivery, and professional services to global customers.

Welcome to contact us for long-term win-win cooperation.
